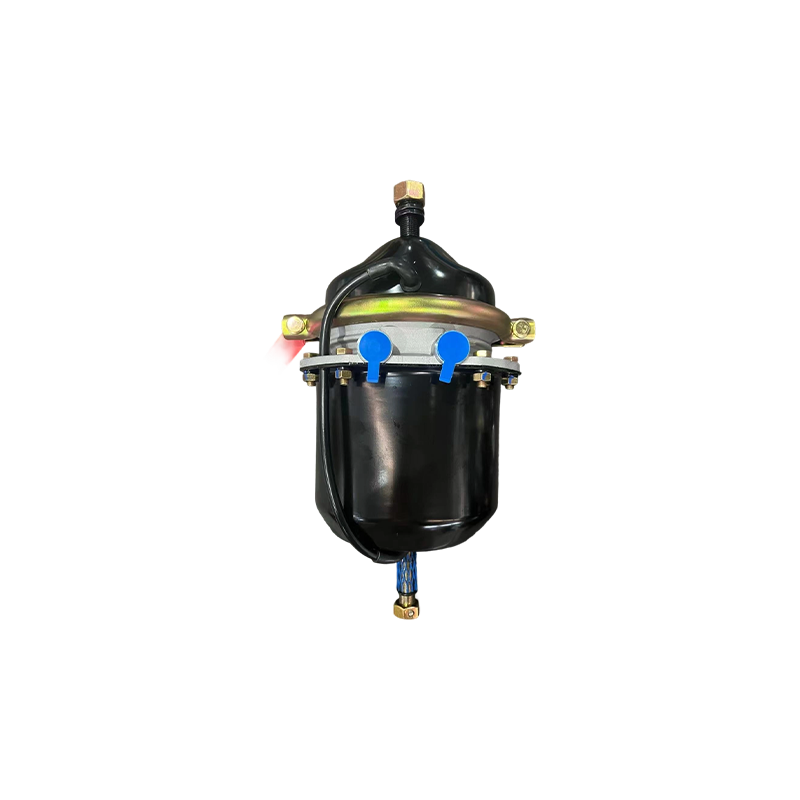

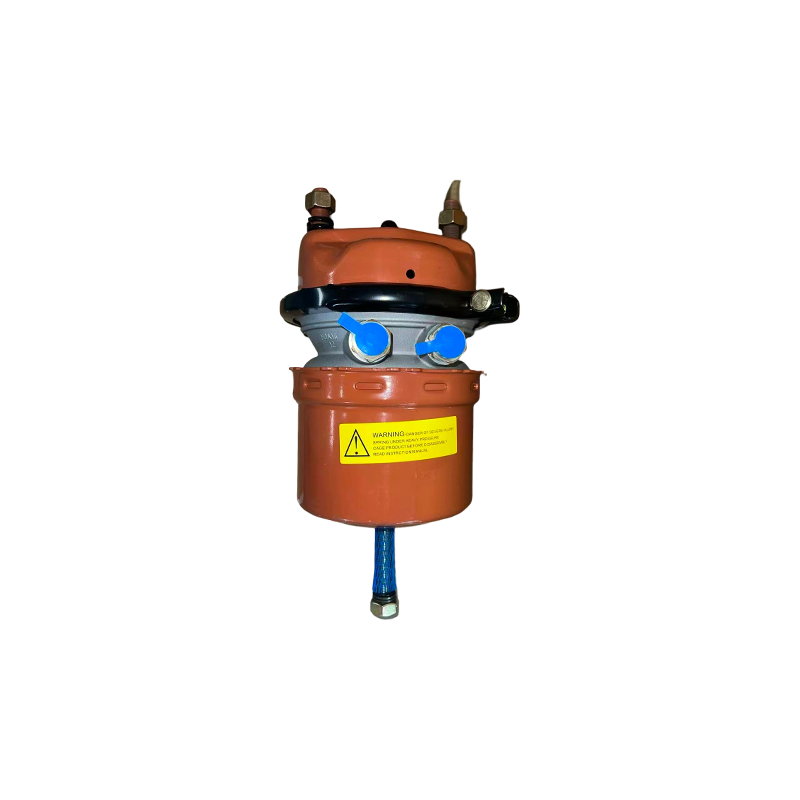

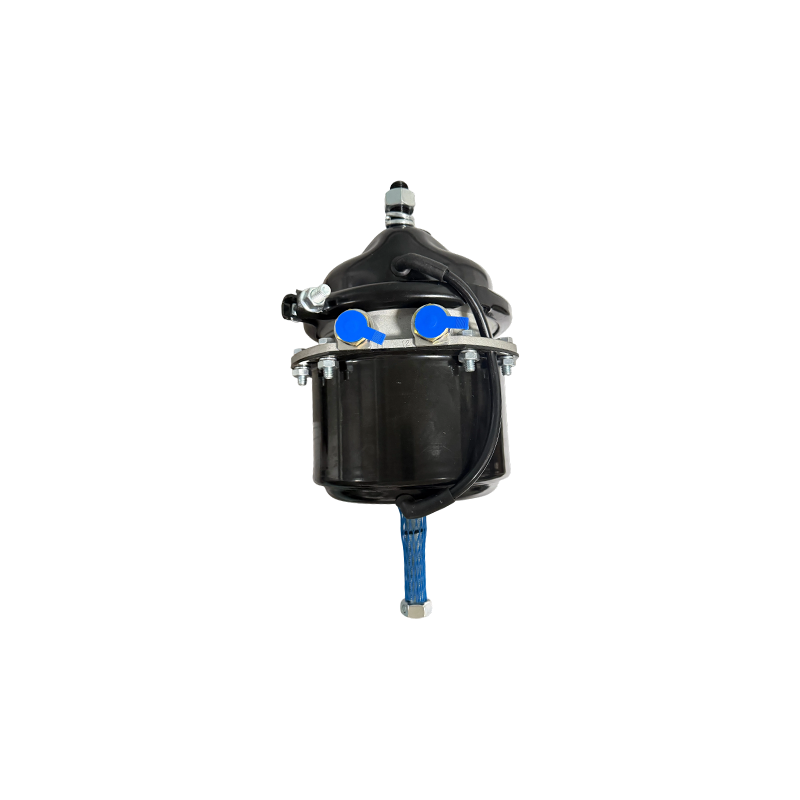

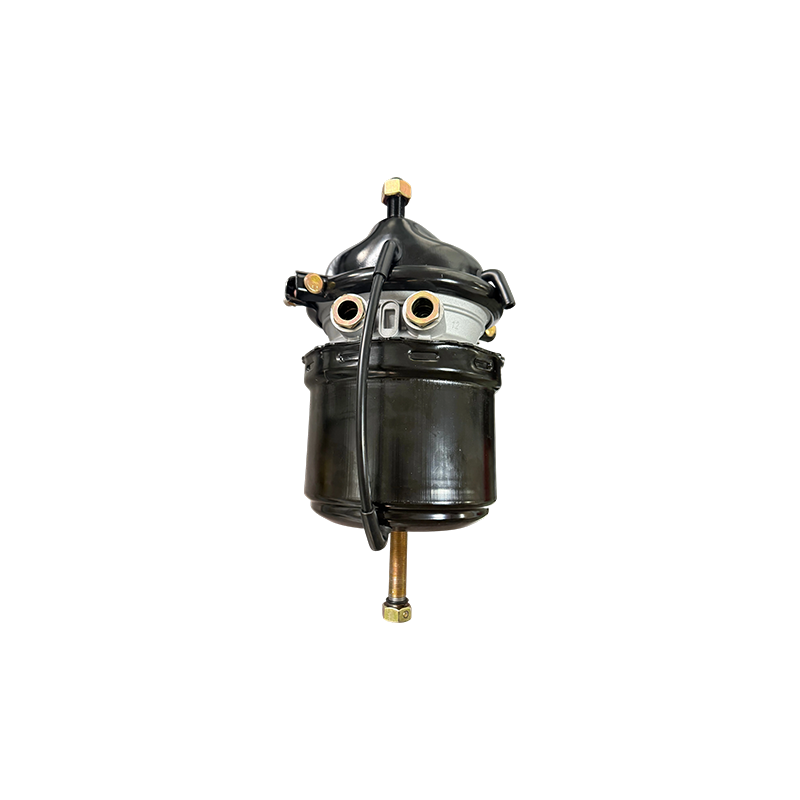

T2424DP short with Voss

The T2424DP Short with Voss is specifically engineered for compact, small-scale vehicle chassis, balancing spatial compatibility with high-performance braking requirements. Its short-stroke design effectively accommodates limited vehicle installation space while maintaining superior braking responsiveness and operational stability.
This series features a thickened cylinder body structure capable of withstanding greater mechanical stress; this ensures long-term reliability under high-intensity usage conditions and extends the overall service life of the brake chamber. The internal design incorporates a thickened, waterproof diaphragm, which not only enhances durability but also improves resistance to water and oil while boosting braking efficiency, thereby ensuring stable braking performance across a wide range of complex operating conditions.
The integrated Voss interface system strikes an optimal balance between sealing integrity and ease of installation, facilitating seamless integration of the brake chamber with the vehicle's chassis piping system to deliver an efficient and reliable braking solution. Leveraging the combined advantages of a compact structure, a high-endurance cylinder body, and a thickened diaphragm, this product represents the ideal choice for small and compact vehicles seeking a high-performance, safe braking experience, providing long-term, reliable braking assurance for the vehicle.

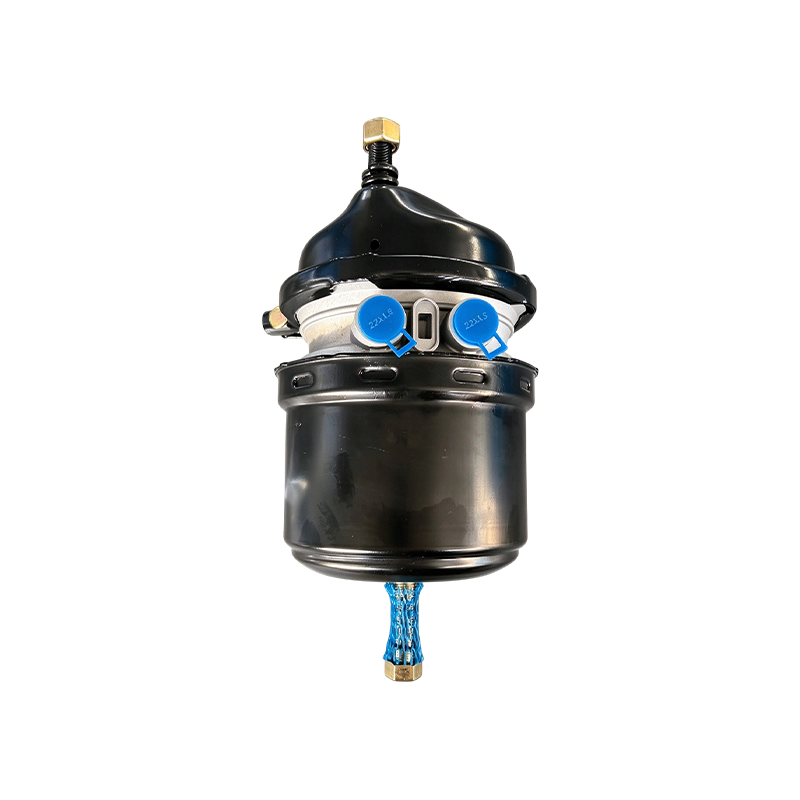

PREV：No previous product NEXT：T2424DP Sealed with M22 port

Description
Contact Us

Operating temperature range: -40°C to +80°C
Supplied in the parking brake position
Available colours: yellow/black/red
Once the product has passed testing, the air inlet is fitted with a matching threaded protective plug
The push rod is fitted with a matching coloured threaded protective sleeve
The product is placed in a protective bag when packed

E: Stus Spacing 120.7mm J: Pushrod thread K: Distance from top cover to center of Clevis Pin(mm)
TYPE	Stroke(inch)	E	J	K	Port
2424	2.25	120.7with M16*1.5	M14*1.5	125	M161.5&M181.5
	2.25	120.7with M16*1.5	M16*1.5	270	2-M22VOSS
	2.5	120.7with M16*1.5	M14*1.5	250	2-M16*1.5
	2.5	120.7with M16*1.5	M16*1.5	310	2-M22*1.5
