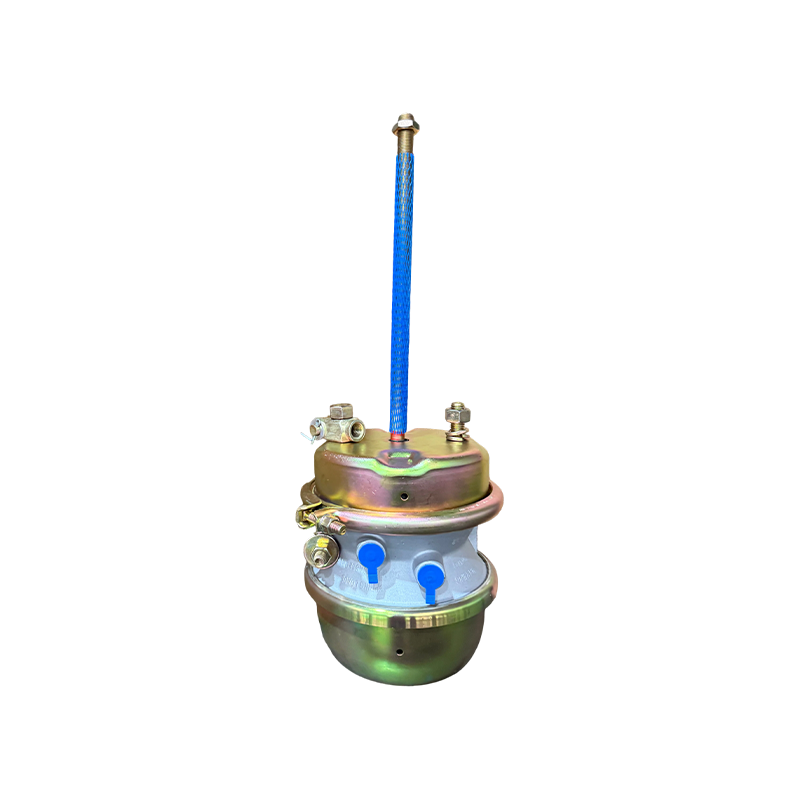

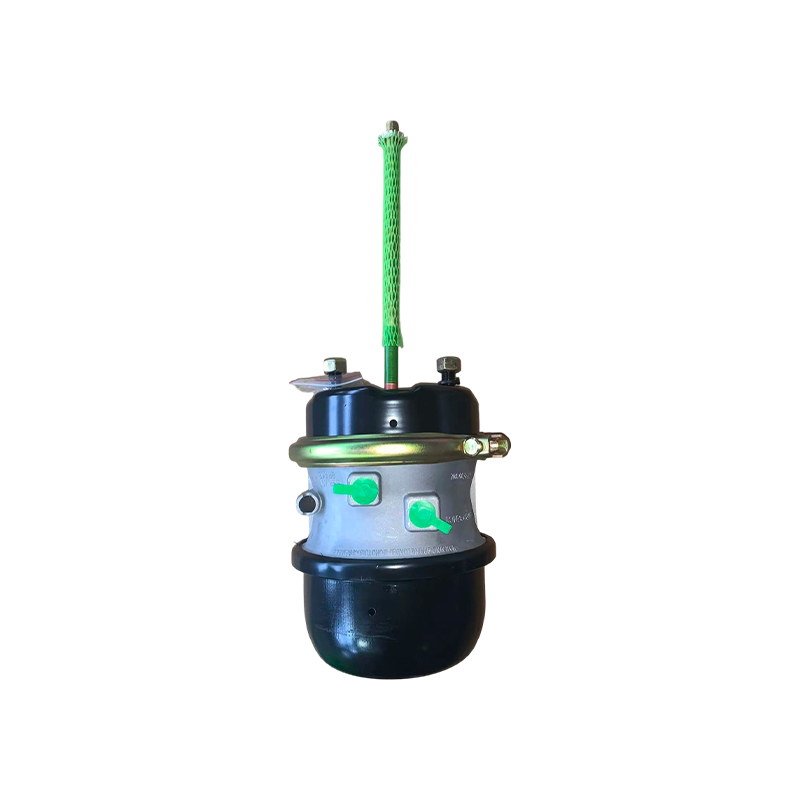

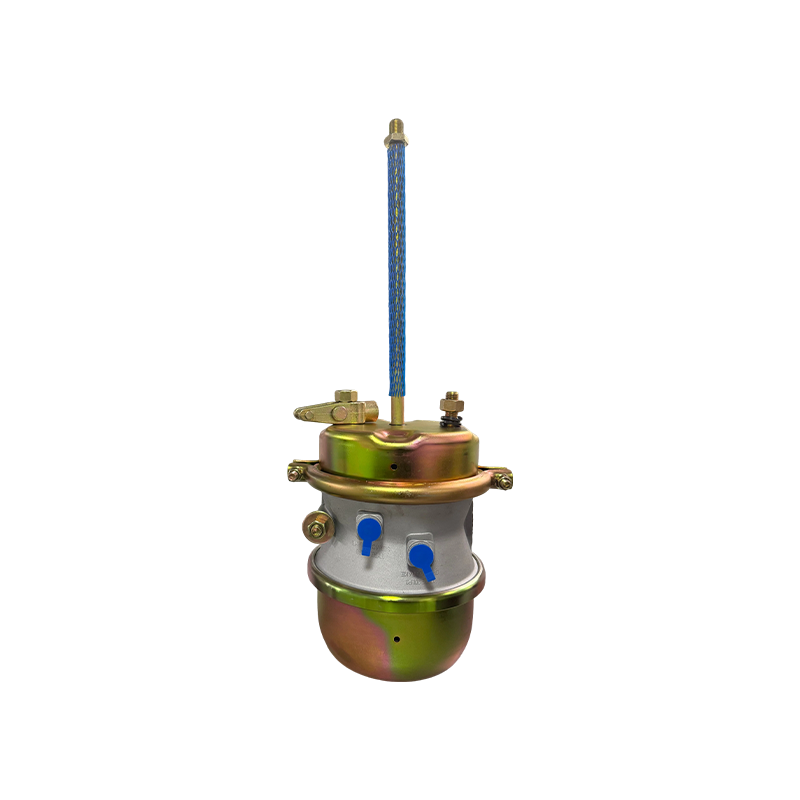

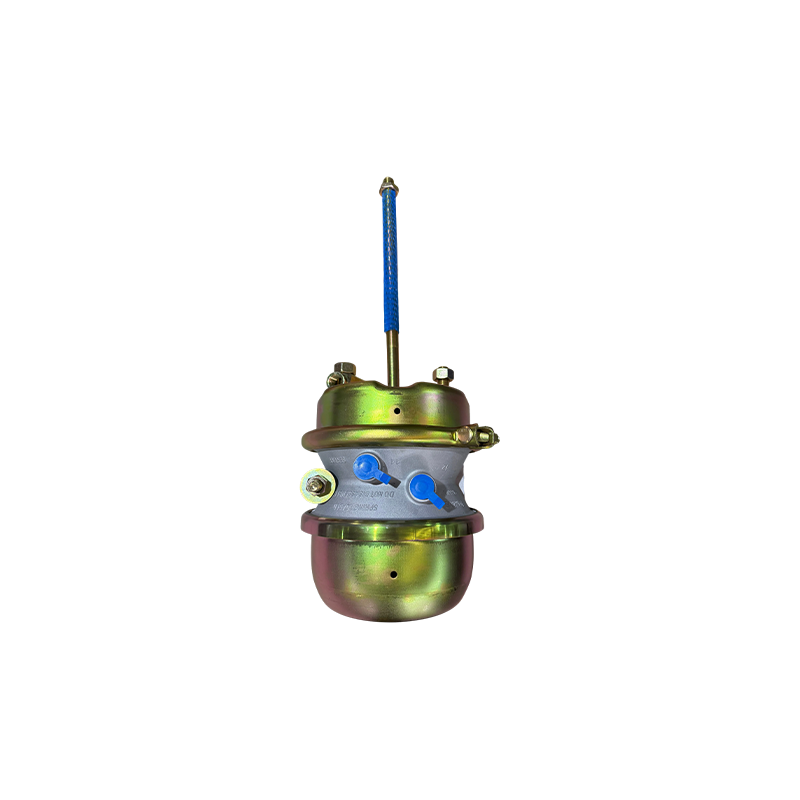

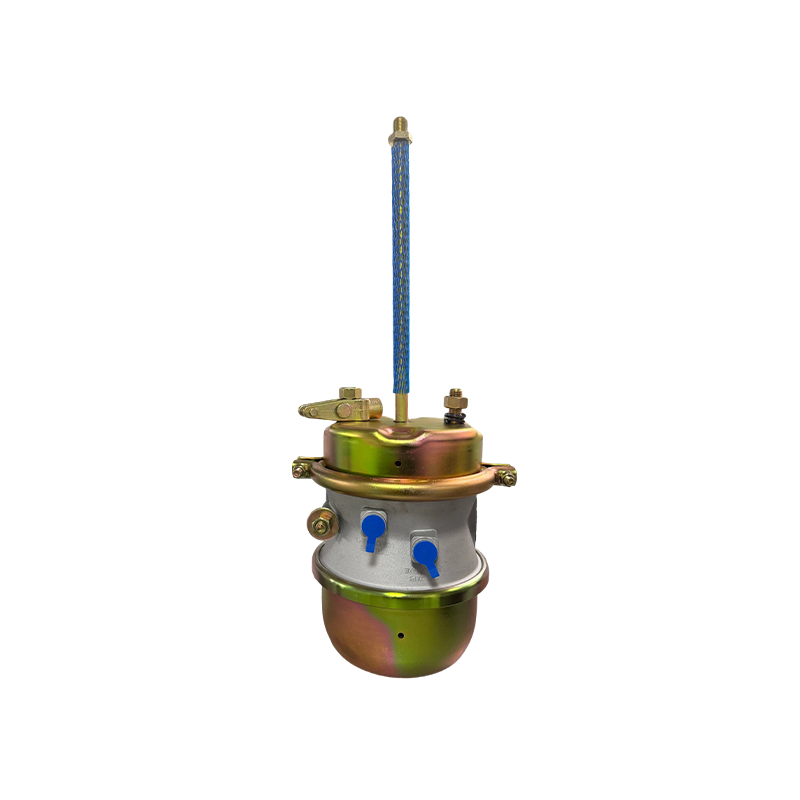

T3030 Long stroke with Welded Clevis brake chamber

The T3030 is engineered specifically for exceptional durability and reliability, making it suitable for a wide range of heavy-duty and commercial vehicles. This series features a fully enclosed structure in which the large lower spring section is permanently sealed to the central aluminum housing; this design effectively prevents the ingress of oil, water, and other corrosive agents, thereby ensuring stable, long-term operation in complex environments and extending the product's service life.
The thickened housing design is capable of withstanding greater mechanical loads, thereby enhancing structural integrity. Furthermore, the surface undergoes a specialized thickening treatment to maintain superior resistance to corrosion, rust, and abrasion across diverse operating conditions, guaranteeing the reliability of the brake chamber even in high-temperature, humid, or otherwise harsh environments.
Additionally, the T3030 brake chamber features a detachable yoke design that accommodates the specific installation requirements of various vehicle models, facilitating both installation and maintenance. Its long-stroke design delivers enhanced braking force and smoother response characteristics, ultimately improving vehicle braking safety and operational efficiency.

PREV：No previous product NEXT：T2430 Long rod black brake chamber

Description
Contact Us

Operating temperature range: -40°C to +80°C
Supplied in the parking brake position
Available colours: yellow/black/red
Once the product has passed testing, the air inlet is fitted with a matching threaded protective plug
The push rod is fitted with a matching coloured threaded protective sleeve
The product is placed in a protective bag when packed

A: The length from top cover to the bottom spring house(mm) E: Stus Spacing 120.7mm J: Pushrod thread K: Distance from top cover to center of Clevis Pin(mm) Stroke: 2.25inch=57mm 2.5inch=63.5 3inch=76mm
TYPE	Stroke(inch)	A	E	J	K	Port
3030	2.25	230	120.7with M16*1.5	M16*1.5	270	2-NPT3/8
	2.25	230	120.7with M16*1.5	5/8-18UNF	270	2-NPT3/8
	2.25	230	120.7with 5/8-11UNC	5/8-18UNF	270	2-NPT3/8
	2.5	235	120.7with 5/8-11UNC	5/8-18UNF	270	2-M16*1.5
	2.5	235	120.7with 5/8-11UNC	5/8-18UNF	270	2-NPT3/8
	3	265	120.7with 5/8-11UNC	/	57	2-NPT3/8
	3	265	120.7with 5/8-11UNC	5/8-18UNF	254	2-NPT3/8
Replaces:GC3030R,GC3030,GC3030L,9253020020,RL3530BA1
