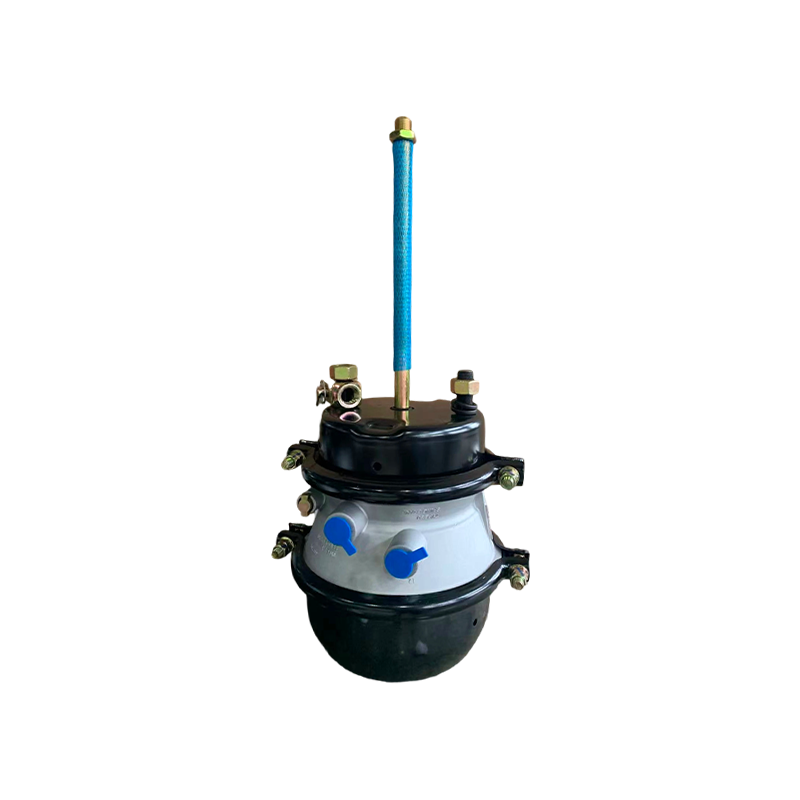

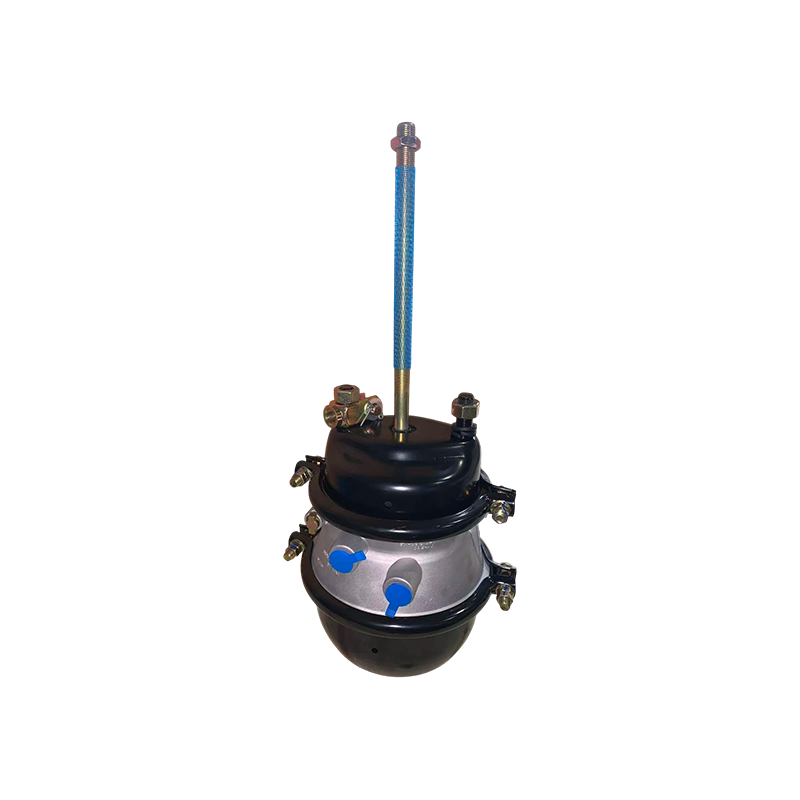

The T2430 Long-Rod Black Brake Chamber is specifically engineered for heavy-duty vehicles and applications requiring high-intensity braking performance, offering a perfect blend of reliability and convenience. This series serves as a direct replacement for components on most vehicle models utilizing 2430DD specifications; its broad compatibility meets a wide range of vehicle modification and maintenance requirements.
The product features a dual-clamp design that streamlines the installation and replacement processes, making them both simpler and more efficient. Users can freely trim the rod length to match the dimensions of the original brake chamber, allowing for customized installation and adjustment to enhance operational convenience. Internally, the brake chamber is equipped with a thickened, durable diaphragm that boasts enhanced resistance to oil and water. This feature effectively extends the product's service life and ensures consistent braking performance, even under prolonged, high-intensity operating conditions.
The black finish and robust structural design not only improve overall corrosion resistance but also bolster the product's durability in challenging environmental conditions. The T2430 Long-Rod Black Brake Chamber is an ideal choice for heavy-duty vehicles, commercial vehicles, and any application demanding highly reliable braking performance, providing users with a safe, durable, and user-friendly braking solution.
Operating temperature range: -40°C to +80°C
Supplied in the parking brake position
Available colours: yellow/black/red
Once the product has passed testing, the air inlet is fitted with a matching threaded protective plug
The push rod is fitted with a matching coloured threaded protective sleeve
The product is placed in a protective bag when packed
| E: Stus Spacing 120.7mm J: Pushrod thread K: Distance from top cover to center of Clevis Pin(mm) Stroke: 2.25inch=57mm 2.5inch=63.5 3inch=76mm |
||||||
| TYPE | Stroke(inch) | E | J | K | Port | |
| 2430 | 2.25 | 120.7with M16*1.5 | M16*1.5 | 270 | 2-NPT3/8 | |
| 2.25 | 120.7with M16*1.5 | M16*1.5 | 270 | 2-NPT3/8 | ||
| 2.5 | 120.7with M16*1.5 | M16*1.5 | 270 | 2-M16*1.5 | ||
| 2.5 | 120.7with 5/8-11UNC | 5/8-18UNF | 270 | 2-NPT3/8 | ||
| 3 | 120.7with 5/8-11UNC | / | 57 | 2-NPT3/8 | ||
| Replaces: | ||||||
Zhejiang Rongzhan Machinery Co., Ltd. is China T2430 Long rod black brake chamber Suppliers and T2430 Long rod black brake chamber Factory, We specialize in the production of spring brake chambers and service brake chambers for trucks and trailers. Backed by stable production capacity, strict quality control systems, and extensive export experience, our products are widely supplied to overseas markets and OEM customers worldwide. Rongzhan is committed to reliable quality, consistent performance, and long-term partnerships. We provide customers with cost-effective solutions and dependable service.
