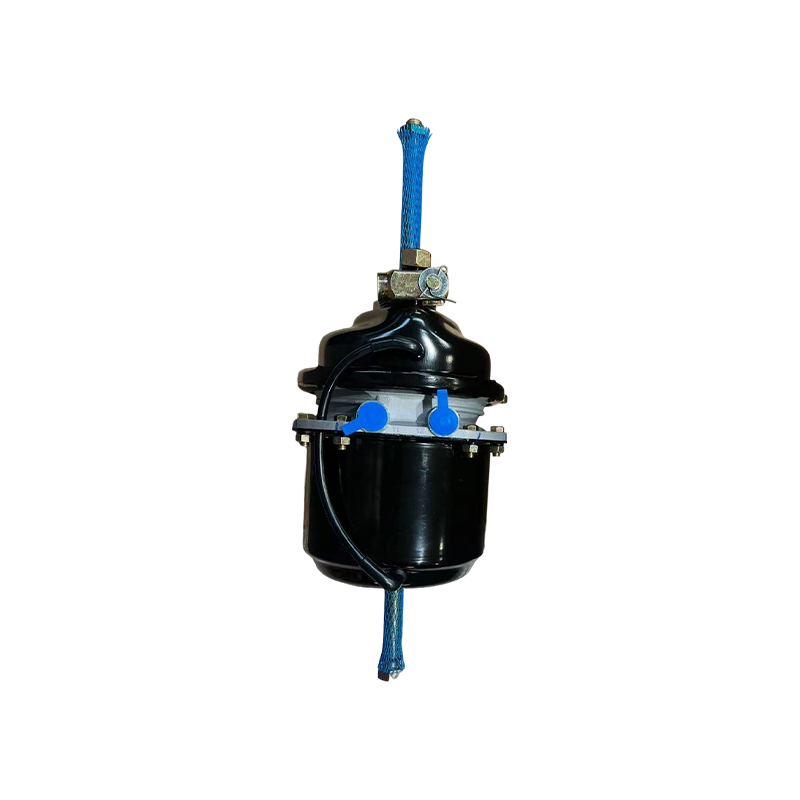

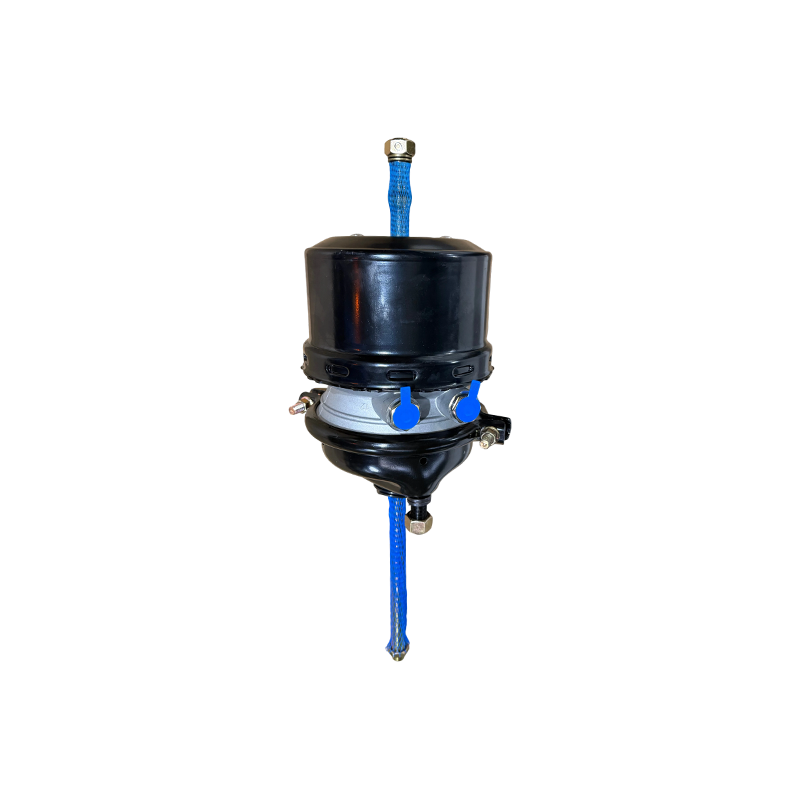

T2424DP Sealed with M22 port

The T2424DP sealed with M22 port and an innovative sealed design, maintains a completely enclosed state between the central body and the lower housing. This effectively prevents the ingress of dust, moisture, and oil contaminants—a distinct advantage over traditional open-structure designs—thereby significantly enhancing both durability and service life.
This series of brake chambers features a compact structure, making it ideally suited for small and compact vehicle models where chassis space is limited. Furthermore, the sealed construction of the central body and lower housing ensures stable and reliable braking performance, even during prolonged periods of high-intensity operation. The thickened cylinder body design reinforces load-bearing capacity and boosts overall mechanical strength, providing long-term safety assurance for the vehicle. Internally, the unit utilizes a highly durable diaphragm that exhibits excellent resistance to both oil and water; this extends maintenance intervals while simultaneously maintaining highly responsive braking performance. Equipped with a standard M22 interface, the unit facilitates quick installation and pipeline connection, ensuring both compatibility and leak-proof sealing.

PREV：T2424DP short with Voss NEXT：No next product

Description
Contact Us

Operating temperature range: -40°C to +80°C
Supplied in the parking brake position
Available colours: yellow/black/red
Once the product has passed testing, the air inlet is fitted with a matching threaded protective plug
The push rod is fitted with a matching coloured threaded protective sleeve
The product is placed in a protective bag when packed

E: Stus Spacing 120.7mm J: Pushrod thread K: Distance from top cover to center of Clevis Pin(mm)
TYPE	Stroke(inch)	E	J	K	Port
2424	2.25	120.7with M16*1.5	M14*1.5	125	M161.5&M181.5
	2.25	120.7with M16*1.5	M16*1.5	270	2-M22VOSS
	2.5	120.7with M16*1.5	M14*1.5	250	2-M16*1.5
	2.5	120.7with M16*1.5	M16*1.5	310	2-M22*1.5
